REMACLEAN HML
Cleaning bars

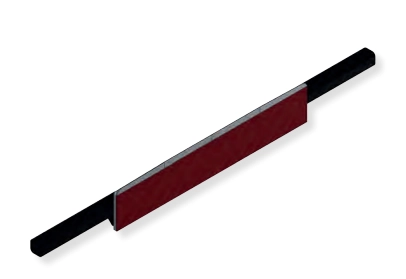

Highly abrasion-resistant, universally applicable cleaning
bar made of carbide with non-stick coating and a robust
steel system carrier. A special version made of stainless
steel, galvanized or chrome-plated is possible. Recommended installation with INNOVATION press-on device
Product details
Benefits
• Powerful and belt-friendly
• Long service life thanks to the
use of highly abrasion-resistant
carbide
• Universal use with many
conveyed goods
• Belt speeds up to 4.0 m/s
• Not suitable for use with
mechanical joints
• HML HR version for temperatures
up to 300°C
• HML type 15 developed for
particularly abrasive conveyed
material
| Technical Data | ||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] |
| 400 | 4,7 | 360 | 720 | 30x30x4 |
| 500 | 6,1 | 480 | 840 | |
| 650 | 7,3 | 600 | 960 | |
| 800 | 8,6 | 720 | 1080 | 40x40x5 |
| 1000 | 12,2 | 960 | 1360 | |
| 1200 | 19,4 | 1080 | 1480 | |
| 1400 | 23,2 | 1320 | 1720 | |
