REMAFLON
The solution for extreme material flow problems
REMAFLON lining is a combination of polytetrafluorethylene (PTFE = Teflon®) and rubber.
They feature especially slippery surfaces, thereby preventing extreme build-up and material flow problems. REMAFLON ensures perfect protection in most applications where dust
or very fine and slightly moist material prone to buildup has to be conveyed. In particular,
the virginal PTFE surface of REMAFLON features outstanding anti-adhesive properties,
which make the surface even more slippery.
Product details
Properties
• Safe protection from material
flow Problems
• Excellent anti-caking properties thanks
to the Teflon® surface (PTFE = extremely
low adhesion and friction coefficients)
• Very good chemical resistance
• Noise damping
• CN bonding layer provides fast and
good adhesion
• Teflon® surfaces approved for contact
with food
Area of application
• Used for toughest caking and material
flow problems requiring the use of Teflon
surfaces, such as for REA plaster or for
the molasses segment (wet) of the sugar
industry
• Flow improvement of very fine and
powdery, non-abrasive materials
• Lining to prevent bridging and
obstructions
• Lining for gutters, slides, transfer
stations and containers
• Coating for walls and outlet elements
in glass production Lining to prevent
bridge formation and blockage

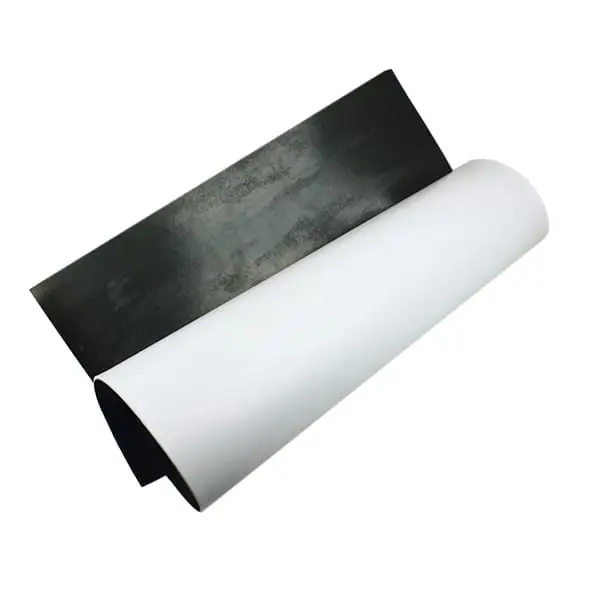

REMAFLON
• Surface: White, PTFE virginal, 1 mm
• Base: Rubber (black) with CN
bonding layer, 2 mm
• Required adhesive system for food contact: CEMENT SC 4000 white/HARDENER
E-40 or CEMENT SC 2000 white/HARDENER ER-42
| REMAFLON | ||
| Specifications | ||
| Polymer basis | PTFE | DIN ISO 1629 |
| Specific weight | 2.16 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 54 Shore D | DIN ISO 7619-1 |
| Colour | White | |
| Ref. No. | Designation | Dimensions |
| 5507004 | REMAFLON | 3 x 1200 x 2 000 mm |
| 5507005 | REMAFLON | 3 x 1200 x 4 000 mm |
| 5507006 | REMAFLON | 3 x 1200 x 6 000 mm |
| 5507007 | REMAFLON | 3 x 1200 x 8 000 mm |
| 5507008 | REMAFLON | 3 x 1200 x 10 000 mm |
