REMAGRIP 60
The universal lagging with high wear resistance
REMAGRIP 60 has been designed for a variety of wet or dry applications and can be universally
applied as a lagging for drive pulleys for low to medium-loaded fabric belts. REMAGRIP 60
offers optimum wear resistance and also features excellent qualities for eliminating material
build-up (also for non-driven pulleys).
Product details
Properties
• Excellent wear resistance
• Reduces slippage between belt and
pulley
• Improves and stabilizes coefficient of
friction
• Evacuation of moisture and dirt
• Protects the pulley against wear and
corrosion
• Prevents material build-up
• Positive influence on belt tracking
• CN bonding layer provides fast and good
adhesion
Area of application
• Grooved rubber lagging for drive pulleys
• For low to medium-loaded fabric belts
• Small pulley diameters (up to 800 mm)
| REMAGRIP 60/CN | ||
| Specifications | ||
| Polymer basis | BR/IR/SBR | DIN ISO 1629 |
| Specific weight | 1.12 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 64 Shore A | DIN ISO 7619-1 |

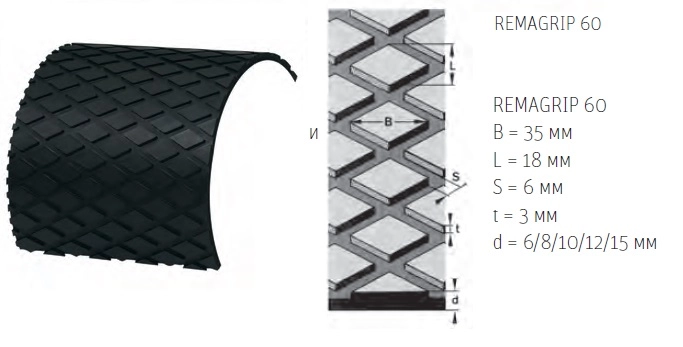

| Profile | 18 x 6 x 3 mm (Profile 20) | |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight |
| 5494708 | REMAGRIP 60/CN | 6 x 2 000 x 10 000 mm | 6.55 kg/m² |
| 5494716 | REMAGRIP 60/CN | 8 x 1 200 x 10 000 mm | 8.96 kg/m² |
| 5494747 | REMAGRIP 60/CN | 8 x 1 600 x 10 000 mm | 8.96 kg/m² |
| 5494753 | REMAGRIP 60/CN | 8 x 2 000 x 10 000 mm | 8.96 kg/m² |
| 5494778 | REMAGRIP 60/CN | 10 x 1 200 x 10 000 mm | 11.20 kg/m² |
| 5494802 | REMAGRIP 60/CN | 10 x 1 600 x 10 000 mm | 11.20 kg/m² |
| 5494819 | REMAGRIP 60/CN | 10 x 2 000 x 10 000 mm | 11.20 kg/m² |
| 5494877 | REMAGRIP 60/CN | 12 x 2 000 x 10 000 mm | 13.44 kg/m² |
| 5494904 | REMAGRIP 60/CN | 15 x 2 000 x 10 000 mm | 17.10 kg/m² |
