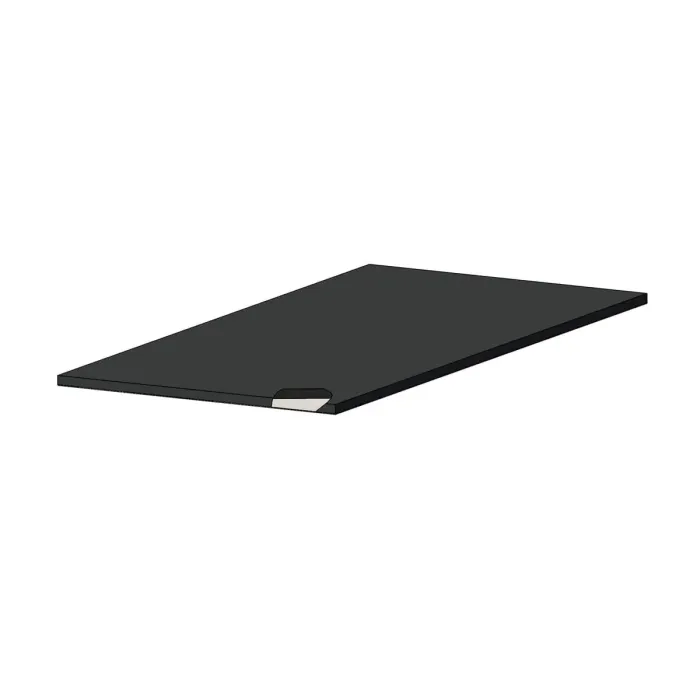

REMASTEEL 60
Rubber plates with metal backing
REMASTEEL plates with rubber quality REMALINE 60 with excellent resistance against
wear in dry conditions and impact energy. A 3 mm S235 (St-37) metal backing hot vulcanized on the undersurface enables a easy fitting on the application areas by means and
prevents dust and material spillage.
Product details
Properties
• Safe protection against abrasion in addition to impact energies with large-size
bulk material
• Easy, flexible and fast application with
secure fastening
• Reduction of operating costs
• Long service-life increases the efficiency
of your equipment
• Easy replacement possible
• Noise and vibration reducing
• Good resistance against weather
Area of application
• Highest resistance for applications with
impact energies and abrasion
• For heavy to medium duty applications in
mining, gravel, sand and stone breaking
mills and other industrial sectors
• In applications like SKW bodies, bunkers,
chutes, loading points, slides, hoppers,
silos, etc., which are subject to wear and
noise influences
| REMASTEEL 60 | ||
| Specifications | ||
| Polymer basis | BR/IR/SBR | DIN ISO 1629 |
| Specific weight | 1.13 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 60 Shore A | DIN ISO 7619-1 |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight |
| 5391500 | REMASTEEL 60 | 10 x 1250 x 2 500 mm | 98 kg |
| 5391510 | REMASTEEL 60 | 15 x 1250 x 2 500 mm | 115 kg |
| 5391520 | REMASTEEL 60 | 20 x 1250 x 2 500 mm | 133 kg |
| 5391530 | REMASTEEL 60 | 25 x 1250 x 2 500 mm | 150 kg |
| 5391540 | REMASTEEL 60 | 30 x 1250 x 2 500 mm | 168 kg |
| 5391550 | REMASTEEL 60 | 40 x 1250 x 2 500 mm | 203 kg |
| 5392000 | REMASTEEL 60 | 10 x 300 x 300 mm | 2.8 kg |
| 5392010 | REMASTEEL 60 | 15 x 300 x 300 mm | 3.3 kg |
| 5392020 | REMASTEEL 60 | 20 x 300 x 300 mm | 3.8 kg |
| 5392030 | REMASTEEL 60 | 25 x 300 x 300 mm | 4.3 kg |
| 5392040 | REMASTEEL 60 | 30 x 300 x 300 mm | 4.8 kg |
| 5392050 | REMASTEEL 60 | 40 x 300 x 300 mm | 5.8 kg |
