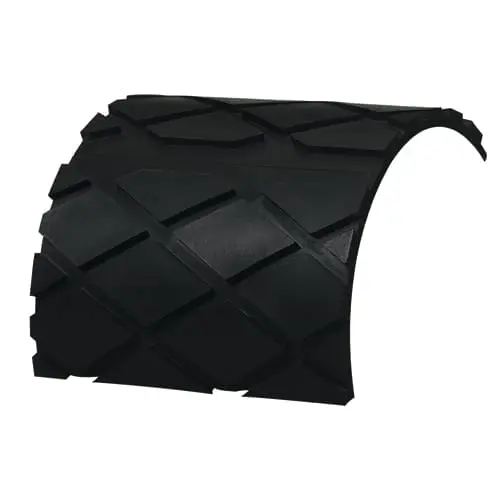

REMA PERFORMANCEgrip 70/CN-SL
The premium strip lagging
REMA PERFORMANCEgrip 70/CN - SL with excellent abrasion resistance, the values of improved elongation to break and effective evacuation of water, moisture and dirt. It‘s deep
diamond profile and additional longitudinal grooves protect drums effectively and ensure
stability in conveyor belt operation. The 343 millimeter width of the flooring strips can be
flexibly cut to fit any drum width - both in the workshop and directly on site
Ապրանքի մանրամասն
Properties
• REMA PERFORMANCEgrip 70/CN-SL
premium quality with high abrasion
resistance
• Reduces slippage between belt
and pulley
• Improves and stabilizes coefficient
of friction
• Evacuation of moisture and dirt
• Protects the pulley from wear and
corrosion
• Prevents material build-up
• Positive influence on belt tracking
• Deep grooving to handle large amounts
of dirt and provide long operating life
• Simple and easy to bond with
CN-Bonding layer
• Improved abrasion
• Improved elongation at break
• Easy to cut to size with
REMA TIP TOP rubber
cutting device Type 32 and attachment
Area of application
• Grooved rubber lagging for drive pulleys
• Long belt conveyors
• Large pulley diameters (from 800 mm)
• For high-tension fabric and steel
cordbelts of all strengths
• Pulley width up to 10.000 mm
without circumferential seam
• No loss when cutting to individual
pulley width
• Joint sealing with the well-proven
T2-System
| REMAGRIP 70/CN - SL strip lagging | ||
| Specifications | ||
| Polymer basis | NR/BR | DIN ISO 1629 |
| Specific weight | 1.12 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 65 Shore A | DIN ISO 7619-1 |
| Profile | 8 x 6 mm (Profile 50) | |
| Colour | Black | |
| Ref. No. | Designation | Dimensions |
| 5210306 | REMA PERFORMANCEgrip 70/CN - SL | 10 x 2 060 x 10 000 mm |
| 5210309 | REMA PERFORMANCEgrip 70/CN - SL | 12 x 2 060 x 10 000 mm |
| 5210311 | REMA PERFORMANCEgrip 70/CN - SL | 15 x 2 060 x 10 000 mm |
| 5210316 | REMA PERFORMANCEgrip 70/CN - SL | 20 x 2 060 x 10 000 mm |
