REMACLEAN GRB
Belt cleaning brushes

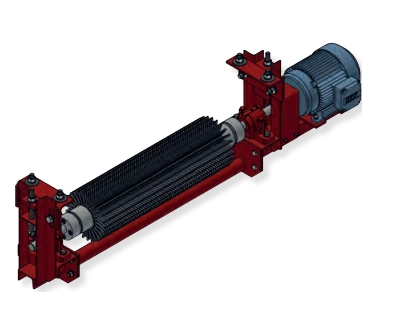

The REMACLEAN GRB conveyor belt cleaning brush
is ideal for removing fine or pulverized material that
adheres only slightly. The nubbed rubber coating ensures
effective cleaning that is gentle on the conveyor belt.
Ապրանքի մանրամասն
Benefits
• Effective cleaning of smooth
conveyor belts
• Designed for belt speeds up
to 2.5 m/s
• Easy mounting and adjustment
thanks to spindle adjustment
• Easy maintenance of the system
• For belt widths from
400 to 2,000 mm
| Technical Data | ||||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] | D [mm] | Motor Capacity [kW] |
| 400 | 80 | 400 | 779 | 679 | 1,197 | 0.55 |
| 500 | 86 | 500 | 986 | 886 | 1,437 | |
| 650 | 113 | 650 | 1110 | 1010 | 1,585 | 0.75 |
| 800 | 116 | 800 | 1377 | 1277 | 1,859 | |
| 1000 | 119 | 1000 | 1512 | 1412 | 1,991 | |
| 1200 | 133 | 1200 | 1950 | 1850 | 2,436 | 1,10 |
| 1400 | 137 | 1400 | 2150 | 2050 | 2,636 | |
| 1600 | 140 | 1600 | 2350 | 2250 | 2,836 | |
| 1800 | 177 | 1800 | 2550 | 2450 | 3,127 | 1,50 |
| 2000 | 180 | 2000 | 2750 | 2650 | 3,327 | |
