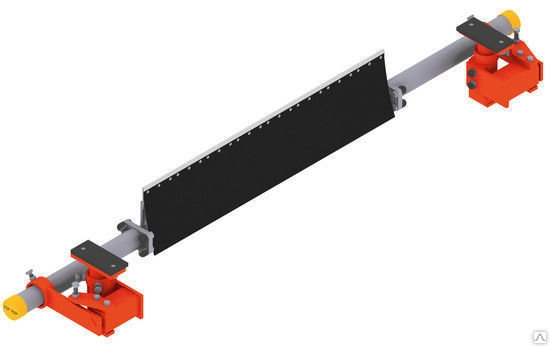

REMACLEAN HM-U1
U-Series – for belt return side applications
This system is suitable for cleaning the conveyor belt in
the return side of the belt for speeds up to 6.5 m/s. The
design of the REMACLEAN HM-U1 carbide blade perfectly
adjusts to the belt, thus providing an effective and
belt-friendly cleaning. The design of the carbide blade,
as well as its anti-caking coating made of polyethylene,
guarantee extended service life and high reliability.
Precise pre-tensioning and subsequent control is
ensured thanks to the spindle-type tension unit and
an integrated scale.
Ապրանքի մանրամասն
Benefits
• High cleaning efficiency due to
optimal contact of the tungsten
carbide blade
• Long service life due to the use of
highly wear-resistant carbide
• Protection of the carrier body due
to run-off aprons at the segments
• Easy to fit and adjust
• Low maintenance
| Technical Data | ||||
Conveyor Belt Width (mm) |
Weight (kg) |
A (mm) |
B (mm) |
C (mm) |
| 400 | 31.6 | 360 | 600 – 1,215 | 1,4 |
| 500 | 33.3 | 480 | 720 – 1,315 | 1,5 |
| 650 | 34.9 | 600 | 840 – 1,465 | 1,65 |
| 800 | 47.0 | 720 | 960 – 1,500 | 1,7 |
| 1 | 50.6 | 960 | 1,200 – 1,750 | 2 |
| 1,2 | 85.2 | 1,08 | 1,330 – 2,370 | 2,7 |
| 1,4 | 89.4 | 1,2 | 1,450 – 2,570 | 2,9 |
| 1,6 | 150.6 | 1,44 | 1,700 – 2,696 | 3,1 |
| 1,8 | 160.1 | 1,68 | 1,900 – 2,896 | 3,3 |
| 2 | 182.7 | 1,8 | 2,100 – 2,896 | 3,5 |
| 2,2 | 191.1 | 2,04 | 2,300 – 3,146 | 3,75 |
| 2,4 | 199.4 | 2,28 | 2,500 – 3,396 | 4 |
| 2,6 | 210.0 | 2,52 | 2,700 – 3,596 | 4,2 |
