REMACLEAN HM-U3
U-Series – for belt return side applications

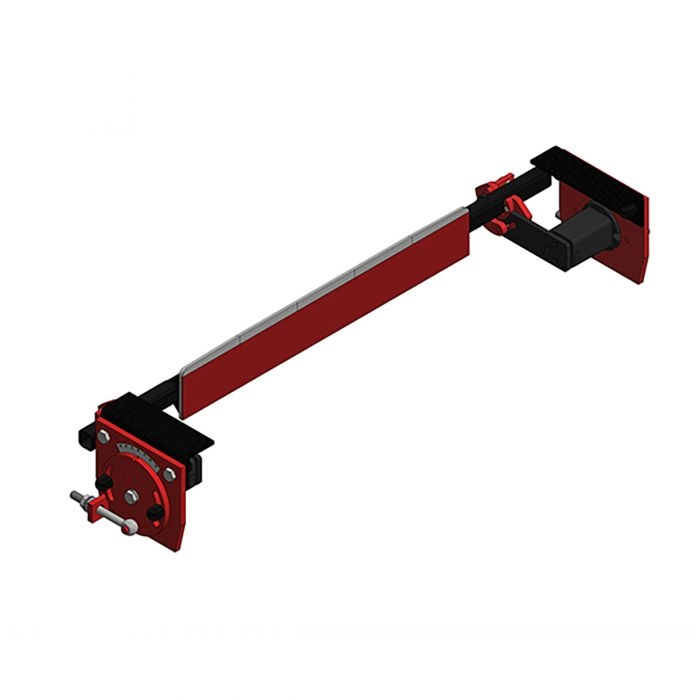

The REMACLEAN HM-U3 system is an effective combination of the full-length REMACLEAN HML carbide bar
and the precise INNOVATION tension unit. REMACLEAN
HM-U3 can be used for speeds up to 4.0 m/s and ensures
effective cleaning that is gentle on the conveyor belt.
Ապրանքի մանրամասն
Benefits
• High cleaning efficiency
• Long service life due to the use of
highly wear-resistant carbide
• Easy mounting and accurate
adjustment on both sides
• Low maintenance
• For belt widths from
400 – 1,400 mm
| Technical Data | ||||||||||
| Conveyor Belt Width | Weight | A | B | C | F | G | H | I | J | K |
| [mm] | [kg] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
| 400 | 19,1 | 360 | 600-800 | 720 | 186 | 178 | 138 | 10 | 158 | 264 |
| 500 | 20,4 | 480 | 700-900 | 840 | ||||||
| 650 | 21,6 | 600 | 850-1,050 | 960 | ||||||
| 800 | 22,9 | 720 | 1,050-1,250 | 1,080 | ||||||
| 1,000 | 36,5 | 960 | 1,250-1,450 | 1,360 | 237 | 200 | 160 | 20 | 180 | 335 |
| 1,200 | 60,3 | 1,080 | 1,500-1,700 | 1,480 | 307 | 240 | 200 | 35 | 220 | 405 |
| 1,400 | 64,2 | 1,320 | 1,740-1,940 | 1,720 | ||||||
