REMACLEAN HM-U7
U-Series – for belt return side applications

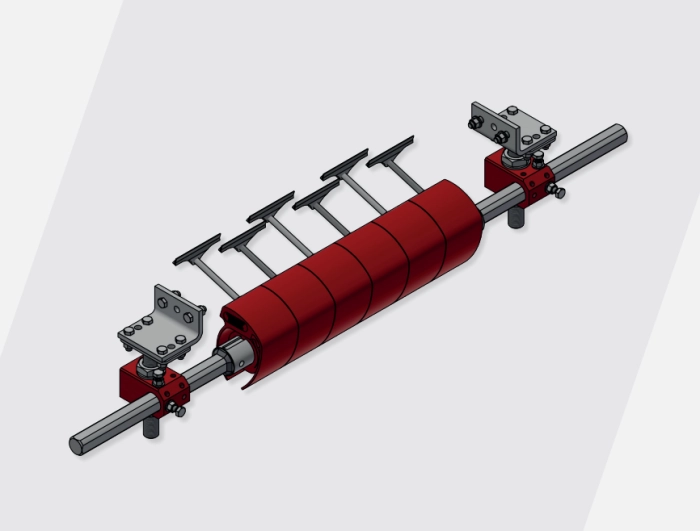

The cleaning system REMACLEAN HM-U7 is suitable for
speeds up to 4.0 m/s. Thanks to the effective combination of carbides embedded in polyurethane, optimum
adaptation to the conveyor belt surface is ensured. The
tungsten carbide blades can be rotated on their own axis
and thus provide gentle cleaning of the conveyor belt.
Ապրանքի մանրամասն
Benefits
• Optimal adjustment of the
carbide blades to the conveyor
belt surface – thanks to rotatable
mounting in the polyurethane
base
• Long service life due to the use
of highly wear-resistant carbide
• Toolless fastening of the
segments thanks to
quick-release fastener
• For belt widths from
400 – 1,400 mm
| Technical Data | |||||
| Conveyor Belt Width [mm] |
Weight [kg] |
A [mm] |
B [mm] |
C [mm] |
Number of Carbide Blades |
| 400 | 31,7 | 320 | 530-1,110 | 1,190 | 3 |
| 500 | 34,8 | 420 | 590-1,230 | 1,300 | 4 |
| 650 | 40,3 | 620 | 770-1,410 | 1,480 | 6 |
| 800 | 44,9 | 720 | 920-1,660 | 1,730 | 7 |
| 1,000 | 51,2 | 920 | 1,140-1,880 | 1,950 | 9 |
| 1,200 | 57,4 | 1,120 | 1,360-2,100 | 2,170 | 11 |
| 1,400 | 63,6 | 1,320 | 1,580-2,310 | 2,390 | 13 |
