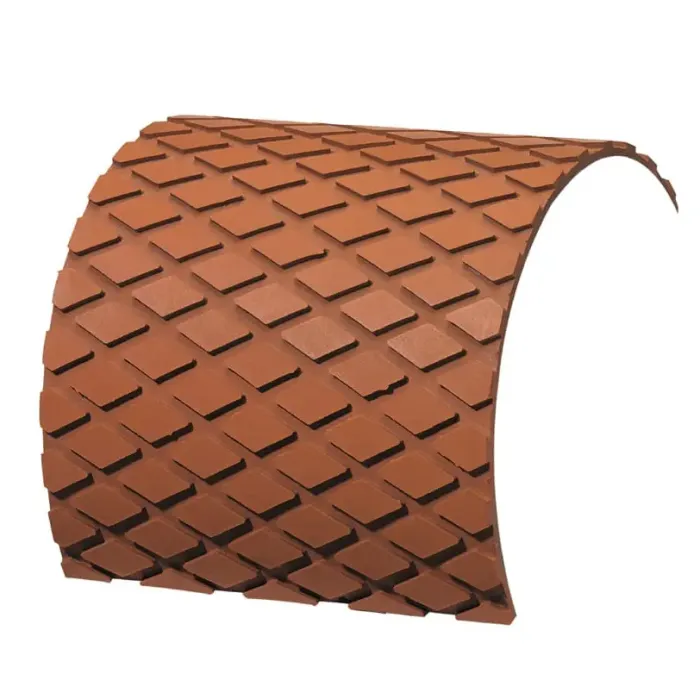

REMAGRIP 50
The universal lagging with high elasticity
REMAGRIP 50 has been designed for a variety of wet or dry applications and can be
universally applied as a lagging for drive pulleys for low to medium-loaded fabric belts.
Thanks to its excellent elasticity, REMAGRIP 50 also features excellent qualities for
eliminating material build-up (also for non-driven pulleys).
Ապրանքի մանրամասն
Properties
• Highly elastic, soft lagging for drive
pulleys
• Reduces slippage between belt and
pulley
• Improves and stabilizes coefficient of
friction
• Evacuation of moisture and dirt
• Protects the pulley against wear and
corrosion
• Prevents material build-up
• Positive influence on belt tracking
• Excellent self-cleaning properties
• CN bonding layer provides fast and good
adhesion
Area of application
• Grooved rubber lagging for drive pulleys
• For low to medium-loaded fabric belts
• For short belt conveyers or small pulley
diameters (up to 800 mm)
| REMAGRIP 50/CN | ||
| Specifications | ||
| Polymer basis | NR | DIN ISO 1629 |
| Specific weight | 1.11 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 51 Shore A | DIN ISO 7619-1 |
| Profile | 18 x 6 x 3 mm (Profile 20) | |
| Colour | Orange* | |
| Ref. No. | Designation | Dimensions | Weight |
| 5494548 | REMAGRIP 50/CN | 8 x 2 000 x 10 000 mm | 8.56 kg/m² |
| 5494605 | REMAGRIP 50/CN | 10 x 2 000 x 10 000 mm | 10.60 kg/m² |
| 5494667 | REMAGRIP 50/CN | 12 x 2 000 x 10 000 mm | 12.72 kg/m² |
