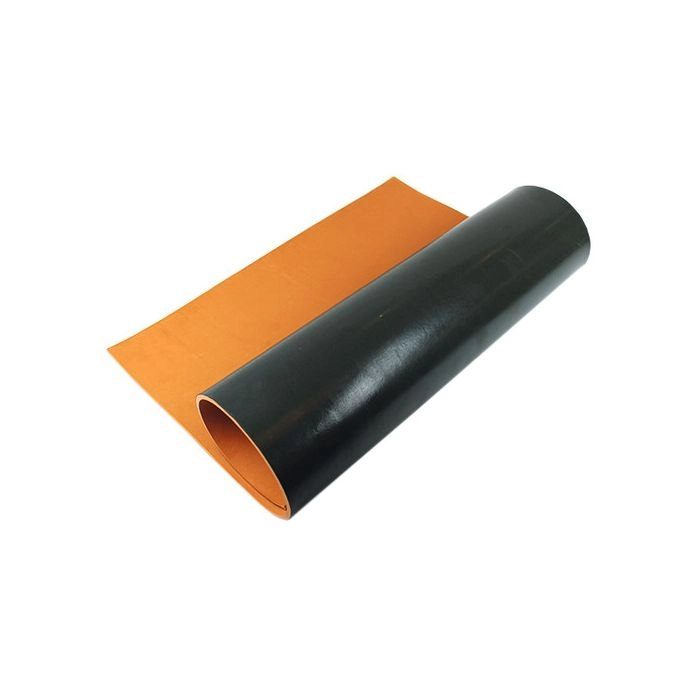

REMALINE 40 ORANGE
The universal lining for many applications especially for wet abrasion
REMALINE 40 ORANGE has been designed to withstand wear and caking for a variety of
applications especially from wet abrasion.
Ապրանքի մանրամասն
Properties
• Safe protection against wear and material
build-up especially from wet abrasion
• Highly elastic
• Good self-cleaning capability
• CN bonding layer provides fast and good
adhesion
Area of application
• Universally applicable as lining for
example of slurry chutes, pipes, flotation
cells, tanks and launders
• Flexilo and hopper lining
• Lining for coal processing
• Lining of excavator buckets to prevent
caking
• Slurry handling
| REMALINE 40 ORANGE/CN | ||
| Specifications | ||
| Polymer basis | NR | DIN ISO 1629 |
| Specific weight | 1.05 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 44 Shore A | DIN ISO 7619-1 |
| Colour | Orange* | |
| Ref. No. | Designation | Dimensions | Weight |
| 5490873 | REMALINE 40 ORANGE/CN | 3 x 1500 x 10 000 mm | 3.59 kg/m² |
| 5490859 | REMALINE 40 ORANGE/CN | 6 x 2000 x 10 000 mm | 6.80 kg/m² |
| 5490804 | REMALINE 40 ORANGE/CN | 10 x 2000 x 10 000 mm | 11.13 kg/m² |
| 5490811 | REMALINE 40 ORANGE/CN | 12 x 2000 x 10 000 mm | 13.23 kg/m² |
| 5490828 | REMALINE 40 ORANGE/CN | 20 x 2000 x 10 000 mm | 21.84 kg/m² |
| 5490835 | REMALINE 40 ORANGE/CN | 25 x 2000 x 10 000 mm | 27.04 kg/m² |
