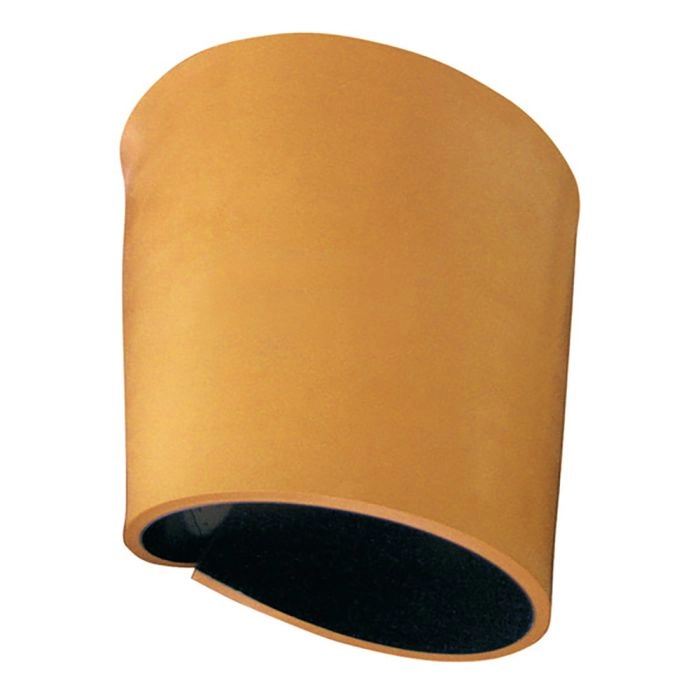

REMALINE 50
The highly tear-resistant lining
REMALINE 50/CN is suitable for wet applications based on its excellent properties. Thanks
to its great elasticity and high tear resistance, it is especially useful for lining pipes, chutes
and tanks in power plants and gravel works. Furthermore, it can be used on non-driven
pulleys to prevent build-up.
Ապրանքի մանրամասն
Properties
• Safe protection against wear and material
build-up especially from wet abrasion and
sharp-edged material
• High tear growth resistance
• High cut resistance
• CN bonding layer provides fast and good
adhesion
Area of application
• Applications in wet areas such as linings
for cool water pipes in power plants for
example
• Lining of chutes, tanks and discharge
hoppers for round grains
• Lagging for non-driven pulleys with low
belt traction (prevents caking)
| REMALINE 50/CN | ||
| Specifications | ||
| Polymer basis | NR | DIN ISO 1629 |
| Specific weight | 1.11 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 51 Shore A | DIN ISO 7619-1 |
| Colour | Orange* | |
| Ref. No. | Designation | Dimensions | Weight |
| 5492527 | REMALINE 50/CN | 3 x 1500 x 10 000 mm | 3.96 kg/m² |
| 5499080 | REMALINE 50/CN | 5 x 2000 x 10 000 mm | 6.25 kg/m² |
| 5492565 | REMALINE 50/CN | 6 x 2000 x 10 000 mm | 7.38 kg/m² |
| 5492620 | REMALINE 50/CN | 10 x 2000 x 10 000 mm | 11.70 kg/m² |
| 5492644 | REMALINE 50/CN | 12 x 2000 x 10 000 mm | 14.04 kg/m² |
| 5492668 | REMALINE 50/CN | 15 x 2000 x 10 000 mm | 17.40 kg/m² |
| 5492682 | REMALINE 50/CN | 20 x 2000 x 10 000 mm | 23.00 kg/m² |
