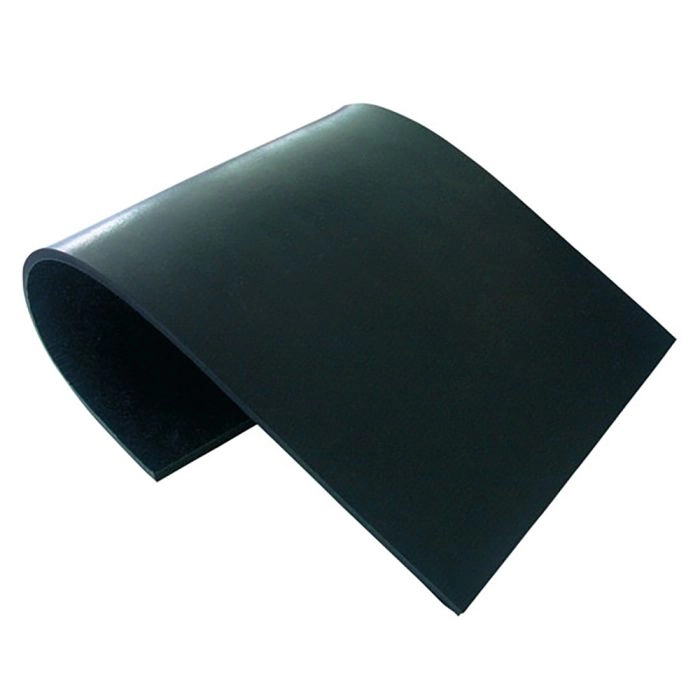

REMALINE 60
The lining for protection from impact wear
Thanks to its low-abrasion properties, REMALINE 60/CN is especially suitable for protecting
against impact and dry wear and, based on this, is frequently used for conveying coal. Furthermore, non-driven pulleys can be vulcanized with REMALINE 60.
Ապրանքի մանրամասն
Properties
• Safe protection against wear and material
build-up to dry abrasion and impact
• Good weather resistance
• CN bonding layer provides fast and good
adhesion
Area of application
• Lining for vibration chutes, slides,
material transfer points, truck bodies,
impact curtains, bunkers, silos, chutes
and filtering buckets
• Lagging for non-driven pulleys with
moderate to high belt traction
| REMALINE 60/CN | ||
| Specifications | ||
| Polymer basis | BR/IR/SBR | DIN ISO 1629 |
| Specific weight | 1.13 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 60 Shore A | DIN ISO 7619-1 |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight |
| 5492819 | REMALINE 60/CN | 3 x 1500 x 10 000 mm | 4.05 kg/m² |
| 5493052 | REMALINE 60/CN | 5 x 2000 x 10 000 mm | 6.30 kg/m² |
| 5492871 | REMALINE 60/CN | 6 x 2000 x 10 000 mm | 7.44 kg/m² |
| 5492895 | REMALINE 60/CN | 8 x 2000 x 10 000 mm | 9.84 kg/m² |
| 5492912 | REMALINE 60/CN | 10 x 2000 x 10 000 mm | 12.10 kg/m² |
| 5492936 | REMALINE 60/CN | 12 x 2000 x 10 000 mm | 14.28 kg/m² |
| 5492950 | REMALINE 60/CN | 15 x 2000 x 10 000 mm | 17.85 kg/m² |
| 5492974 | REMALINE 60/CN | 20 x 2000 x 10 000 mm | 23.60 kg/m² |
| 5492998 | REMALINE 60/CN | 25 x 2000 x 10 000 mm | 29.50 kg/m² |
| 5493021 | REMALINE 60/CN | 30 x 2000 x 10 000 mm | 35.40 kg/m² |
| 5493069 | REMALINE 60/CN | 40 x 2000 x 5 000 mm | 47.20 kg/m² |
| 5493083 | REMALINE 60/CN | 50 x 2000 x 5 000 mm | 59.00 kg/m² |
