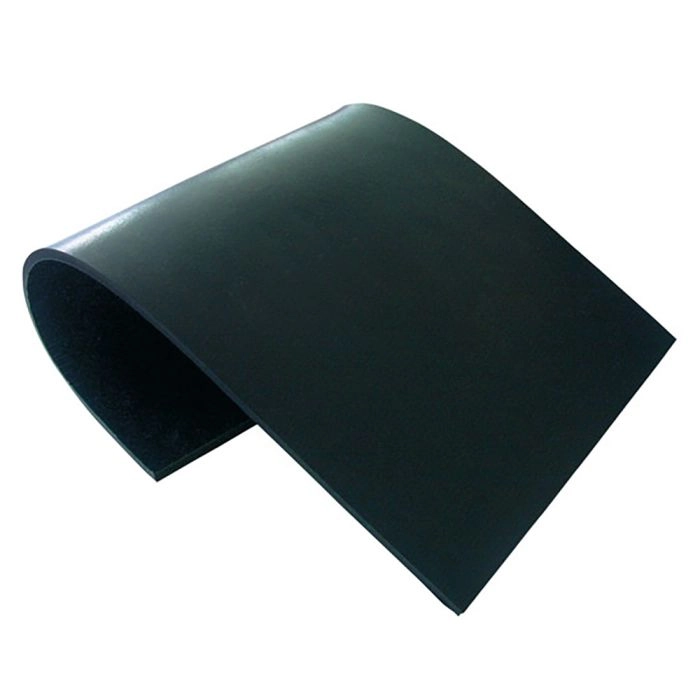

REMALINE 70 V
The self-extinguishing premium quality for tough wear situations
REMALINE 70 V is self-extinguishing and antistatic. It has been specially designed to withstand wear and caking for a variety of wet or
dry applications in challenging ATEX operating conditions with high fire regulation or potentially explosive environments.
Required adhesive system for antistatic rubber coatings: PRIMER PR 200 and CEMENT SC 4000 black/HARDENER ER-42 or
CEMENT SC 2000 black/HARDENER UT-R 20.
German underground approval: LOBA No. 18.43.21-89-33
Polish underground approval: Dopuszczenie WUG Katowice No. B/1724/IV/2016
Ապրանքի մանրամասն
Properties
• Self-extinguishing, antistatic
REMALINE 70 premium quality
• Moderate oil resistance
• Superior resistance to wear
• Excellent resistance to abrasion
• Extremely high tensile strength
• Good weather resistance
• CN bonding layer provides fast and
good adhesion
Area of application
• Material transfer points, chutes, bunkers
and slides
• Lining for truck bodies, impact curtains
and vibrating conveyors
• Lagging for non-driven pulleys with
moderate to high belt traction
• Cold refurbishing of conveyor belts
• Mill lining
| REMALINE 70 V/CN | ||
| Specifications | ||
| Polymer basis | CR | DIN ISO 1629 |
| Specific weight | 1.39 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 60 Shore A | DIN ISO 7619-1 |
| Electric resistance | Antistatic* | |
| Inflammability | Self-extinguishing** | |
| CN bonding layer | Conductive (black) | |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight |
| 5493203 | REMALINE 70 V/CN | 3 x 1500 x 10 000 mm | 4.41 kg/m² |
| 5493863 | REMALINE 70 V/CN | 6 x 2000 x 10 000 mm | 8.82 kg/m² |
| 5493935 | REMALINE 70 V/CN | 10 x 2000 x 10 000 mm | 14.80 kg/m² |
| 5493959 | REMALINE 70 V/CN | 12 x 2000 x 10 000 mm | 17.76 kg/m² |
| 5493973 | REMALINE 70 V/CN | 15 x 2000 x 10 000 mm | 22.20 kg/m² |
| 5493997 | REMALINE 70 V/CN | 20 x 2000 x 10 000 mm | 29.60 kg/m² |
