REMALINE MP 60
The perfect way to reliable production planning
REMALINE MP 60 puts an end to premature, unplanned system downtime and unnecessary
maintenance and standstill costs! This new development, which points the way to the
future of lining materials, offers you more than just first-class surface protection. It also
gives you a timely reminder when the lining needs to be renewed. Thus, you can easily plan
and schedule to ensure smooth-running production processes, and significantly increased
system productivity. A decisive advantage, particularly where it is difficult to check the
thickness of the lining using conventional methods.
Ապրանքի մանրամասն
Properties
• Safe protection against wear and material
build-up with built-in wear indicator

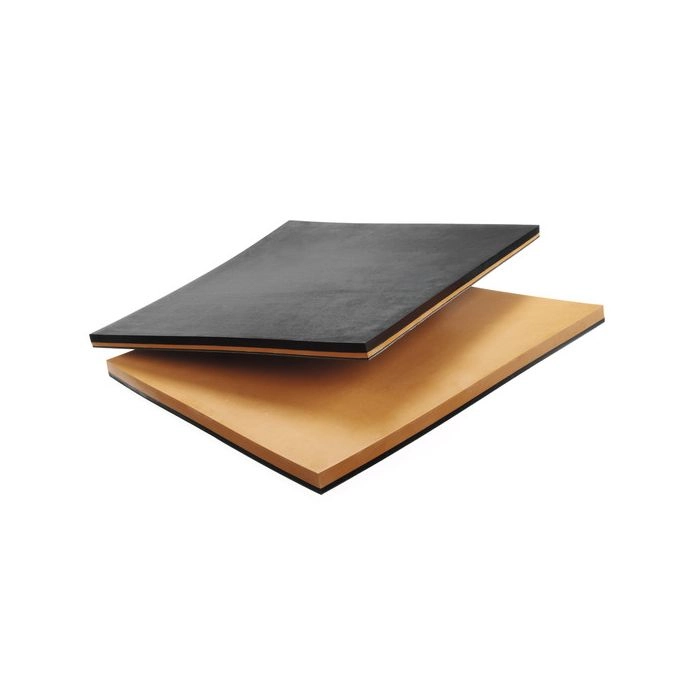

• Black wear layer
• Orange signal layer
• Excellent wear resistance to dry abrasion
and impact
• Very elastic
• High self-cleaning effect
• Noise damping; reduces dust formation
• Good weather resistance
• CN bonding layer provides fast and good
adhesion
Area of application
• Especially suitable for conveying
components that are hard to access and
inspect by conventional methods
• Lining of drains, pipes, hydrocyclones,
flotation cells, tanks, etc for example in
the sand and gravel industry
| REMALINE MP 60/CN | ||
| Specifications | ||
| Polymer basis | BR/IR/SBR/NR | DIN ISO 1629 |
| Specific weight | 1.13 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 60 Shore A | DIN ISO 7619-1 |
| Colour | Black/Orange | |
| Ref. No. | Designation | Dimensions | Signal layer | Weight |
| 5491640 | REMALINE MP 60/CN | 6(4) x 2000 x 10 000 mm | 2 mm | 7.27 kg/m² |
| 5491641 | REMALINE MP 60/CN | 10(6) x 2000 x 10 000 mm | 4 mm | 11.91 kg/m² |
| 5491642 | REMALINE MP 60/CN | 12(8) x 2000 x 10 000 mm | 4 mm | 14.28 kg/m² |
| 5491643 | REMALINE MP 60/CN | 20(16) x 2000 x 10 000 mm | 4 mm | 23.86 kg/m² |
| 5491644 | REMALINE MP 60/CN | 25(21) x 2000 x 10 000 mm | 4 mm | 29.68 kg/m² |
| 5491645 | REMALINE MP 60/CN | 50(40) x 2000 x 10 000 mm | 10 mm | 59.22 kg/m² |
