Serrated profile plates
Special rubber elements

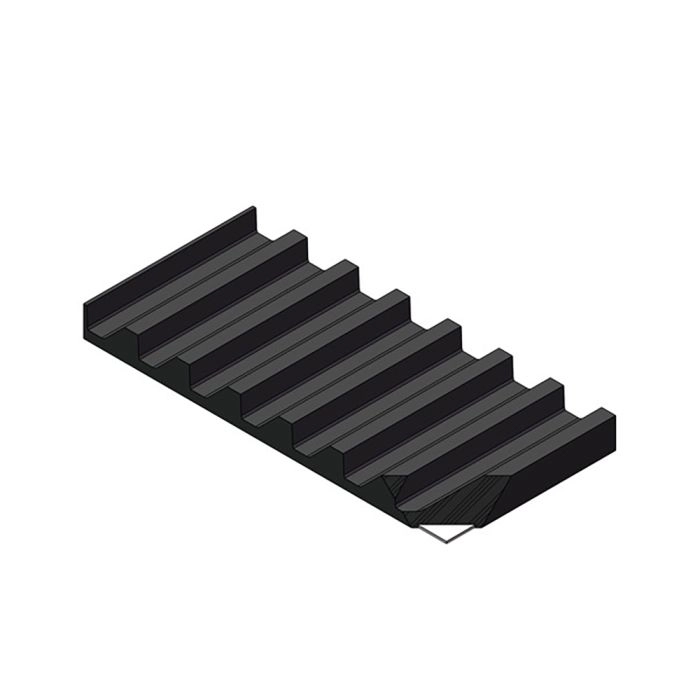

Serrated profile plates ZP with rubber quality REMALINE 70 with excellent resistance
against wear in dry conditions and impact energy. The profile enables a compensation of
unfavourable impact angles (for rubber: 10° - 50°)
Ապրանքի մանրամասն
Properties
• Safe protection against abrasion in
addition to impact energies with
large-size bulk material
• Easy, flexible and fast application with
secure fastening
• Reduces operating costs
• Long service-life increases the efficiency
of your equipment
• Easy replacement
• Good resistance against weather
Area of application
• Material transfer points with problematic impact angle
• Impact aprons and elastic impact curtains
| Serrated profile plate ZP A | ||
| Specifications | ||
| Polymer basis | NR/BR | DIN ISO 1629 |
| Specific weight | 1.09 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 63 Shore A | DIN ISO 7619-1 |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight |
| 5394278 | Serrated profile plate ZP-15 A | 15 x 500 x 2 520 mm | 42 kg |
| 5394292 | Serrated profile plate ZP-35 A | 35 x 500 x 2 520 mm | 59 kg |
| 5394319 | Serrated profile plate ZP-55 A | 55 x 500 x 2 486 mm | 72 kg |
