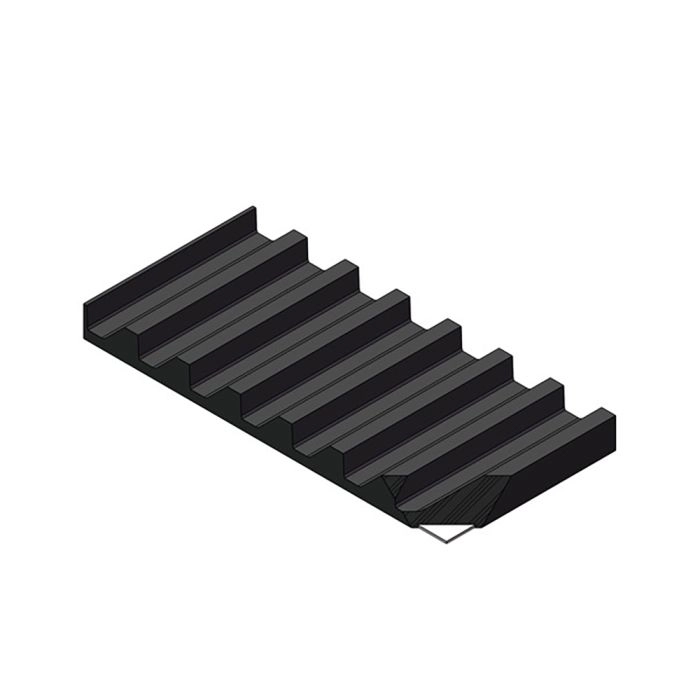

UVZ plates
Serrated rubber plates with metal backing
UVZ plates with rubber quality REMALINE 70 on 5 mm S235 (St-37) metal backing hot
vulcanized with excellent resistance against wear in dry conditions and impact energy.
The profile enables a compensation of unfavourable impact angles (for rubber: 10° - 50°).
The S235 (St-37) metal backing on the undersurface enables a easy fitting on the application areas and prevents dust and material spillage.
Ապրանքի մանրամասն
Properties
• Safe protection against abrasion in
addition to impact energies with largesize bulk material
• Easy, flexible and fast application with
secure fastening
• Reduces operating costs
• Long service-life increases the efficiency
of your equipment
• Easy replacement
• Good resistance against weather
Area of application
• Material transfer points with problematic
impact angle
• In applications with abrasion at high
speeds
• For medium to heavy duty applications in
mining, gravel, sand and stone breaking
mills and other industrial sectors
• In applications like bunkers, chutes,
loading points
| UVZ plate | ||
| Specifications | ||
| Polymer basis | NR/BR | DIN ISO 1629 |
| Specific weight | 1.09 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 63 Shore A | DIN ISO 7619-1 |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight |
| 5397282 | Serrated profile plate UVZ | 80 x 450 x 1 000 mm | 41 kg |
| 5397323 | Serrated profile plate UVZ | 80 x 500 x 1 000 mm | 46 kg |
| 5397361 | Serrated profile plate UVZ | 80 x 600 x 1 000 mm | 54 kg |
| 5397402 | Serrated profile plate UVZ | 80 x 750 x 1 000 mm | 68 kg |
| 5397440 | Serrated profile plate UVZ | 105 x 450 x 1 000 mm | 48 kg |
| 5397488 | Serrated profile plate UVZ | 105 x 500 x 1 000 mm | 54 kg |
| 5397529 | Serrated profile plate UVZ | 105 x 600 x 1 000 mm | 63 kg |
| 5397567 | Serrated profile plate UVZ | 105 x 750 x 1 000 mm | 80 kg |
| 5397608 | Serrated profile plate UVZ | 130 x 450 x 1 000 mm | 61 kg |
| 5397646 | Serrated profile plate UVZ | 130 x 500 x 1 000 mm | 68 kg |
| 5397684 | Serrated profile plate UVZ | 130 x 600 x 1 000 mm | 81 kg |
| 5399228 | Serrated profile plate UVZ | 130 x 750 x 1 000 mm | 102 kg |
