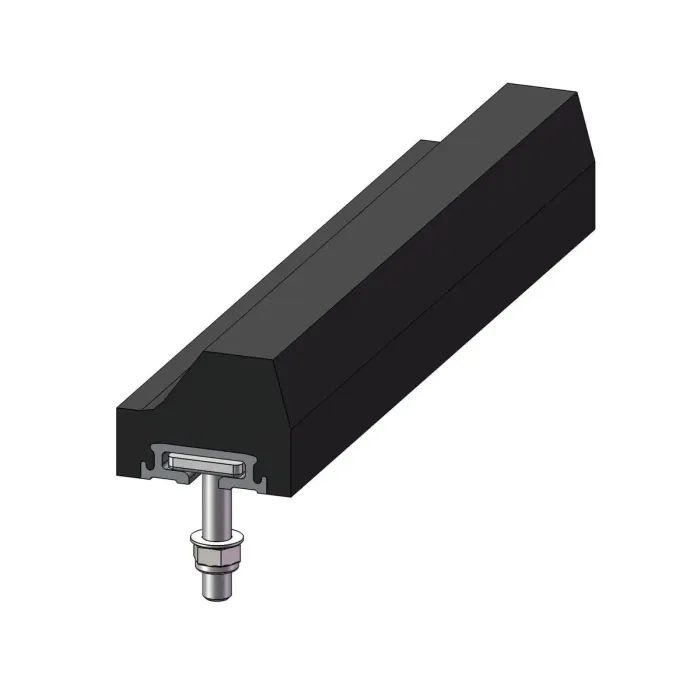

ZP bars
Special rubber elements
ZP bars with rubber quality REMALINE 70 with excellent resistance against wear in dry
conditions and impact energy. The profile enables a compensation of unfavourable impact
angles (for rubber: 10° - 50°). Installation by means of vulcanized fastening profile made
of aluminium and TT-Fastening Unit.
Ապրանքի մանրամասն
Properties
• Safe protection against abrasion in addition to impact energies with large-size
bulk material
• Easy, flexible and fast application with
secure fastening
• Reduces operating costs
• Long service-life increases the efficiency
of your equipment
• Easy replacement
• Good resistance against weather
Area of application
• In applications with abrasion at high
speeds
• Material transfer points with unfavorable
angle of impact
• For medium to heavy duty applications in
mining, gravel, sand and stone breaking
mills and other industrial sectors
• In applications like bunkers, chutes,
loading Points
| ZP bars | ||
| Specifications | ||
| Polymer basis | NR/BR | DIN ISO 1629 |
| Specific weight | 1.09 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 63 Shore A | DIN ISO 7619-1 |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight | TT-Fastening Unit |
| 5390148 | ZP bars ZP-100 | 100 x 130 x 2 500 mm | 29 kg | II |
| 5390155 | ZP bars ZP-150 | 150 x 190 x 2 500 mm | 60 kg | II |
