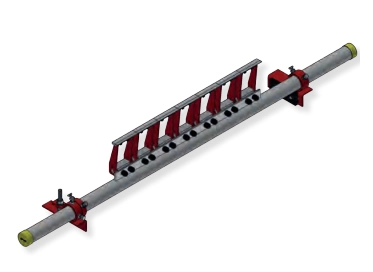

REMACLEAN HM-F2
F-Series – for use on the pulley
REMACLEAN HM-F2 PUR systems are suitable for belt
friendly cleaning at speeds up to 4.5 m/s. The individually
flexible segments are fitted with highly abrasion-resistant
carbides and ensure ideal adjustment to the conveyor belt
surface.
Подробности о продукте
Benefits
• High cleaning efficiency due to optimal
contact of the individual carbide
segments
• Long service life due to the use of highly
wear-resistant carbide
• Easy mounting, adjustment and
maintenance of the system
• Easy adjustment of contact pressure
thanks to spindle clamping device
• For belt widths from 400 – 2,000 mm
| Technical Data | ||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] |
| 400 | 17.авг | 360 | 500 - 1,260 | 1400 |
| 500 | 19.сен | 480 | 620 - 1,360 | 1500 |
| 650 | 22.фев | 600 | 740 - 1,510 | 1650 |
| 800 | 28.мар | 720 | 860 - 1,610 | 1750 |
| 1000 | 33.3 | 960 | 1,100 - 1,860 | 2000 |
| 1200 | 53.6 | 1080 | 1,304 - 1,976 | 2200 |
| 1400 | 57.4 | 1200 | 1,424 - 2,176 | 2400 |
| 1600 | 98.1 | 1440 | 1,670 - 2,870 | 3100 |
| 1800 | 105.8 | 1680 | 1,910 - 3,070 | 3300 |
| 2000 | 111.9 | 1800 | 2,030 - 3,270 | 3500 |
