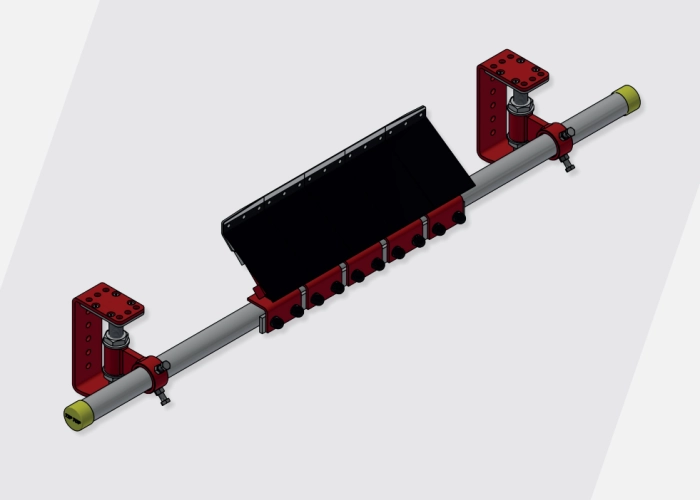

REMACLEAN HM-U10
U-Series – for belt return side applications
The REMACLEAN HM-U10 cleaning system is suitable for
speeds of up to 6.5 m/s. Thanks to the individually movable tungsten carbide blades, optimum adaptation to the
conveyor belt surface and thus effective cleaning that is
gentle on the conveyor belt is guaranteed.
Подробности о продукте
Benefits
• Optimal adjustment to the
conveyor belt surface
• Long service life due to the use of
highly wear-resistant carbide
• Easy adjustment of contact
pressure by means of spindle
clamping device
• For belt widths from
400 – 2,200 mm
| Technical Data | ||||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] | D [mm] | Number of Carbide Blades |
| 400 | 27,2 | 360 | 460 – 1,250 | 1400 | 51 | 3 |
| 500 | 30,7 | 480 | 560 – 1,350 | 1500 | 4 | |
| 650 | 34,4 | 600 | 680 – 1,500 | 1650 | 5 | |
| 800 | 41,8 | 720 | 800 – 1,600 | 1750 | 60,3 | 6 |
| 1000 | 49,6 | 960 | 1,040 – 1,850 | 2000 | 8 | |
| 1200 | 70,7 | 1080 | 1,160 – 2,050 | 2200 | 76,1 | 9 |
| 1400 | 76,5 | 1200 | 1,280 – 2,250 | 2400 | 10 | |
| 1600 | 126,3 | 1440 | 1,520 – 2,950 | 3000 | 101,6 | 12 |
| 1800 | 140,3 | 1680 | 1,760 – 3,150 | 3300 | 14 | |
| 2000 | 150,7 | 1800 | 1,880 – 3,350 | 3600 | 15 | |
| 2200 | 161,3 | 2040 | 2,020 – 3,600 | 3750 | 17 | |
