REMACLEAN HM-U8
U-Series – for belt return side applications

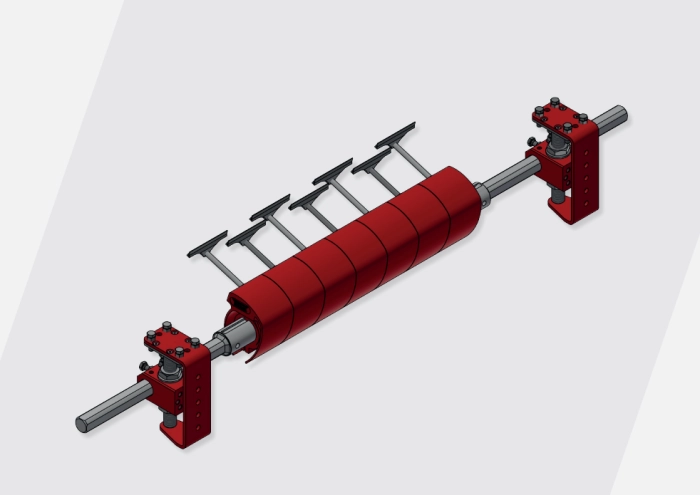

The cleaning system REMACLEAN HM-U8 is suitable for
speeds up to 6.5 m/s. Thanks to the effective combination of carbides embedded in polyurethane, optimum
adaptation to the conveyor belt surface is ensured. The
tungsten carbide blades can be rotated on their own axis
and thus provide gentle cleaning of the conveyor belt.
Подробности о продукте
Benefits
• Optimal adjustment of the carbide
blades to the conveyor belt surface
– thanks to rotatable mounting in
the polyurethane base
• Long service life due to the use of
highly wear-resistant carbide
• Segments bolted to the
system support
• For belt widths from
800 – 2,000 mm
| Technical Data | |||||
| Conveyor Belt Width [mm] |
Weight [kg] |
A [mm] |
B [mm] |
C [mm] |
Number of Carbide Blades |
| 800 | 46,5 | 720 | 920-1,660 | 1,730 | 7 |
| 1,000 | 52,9 | 920 | 1,140-1,880 | 1,950 | 9 |
| 1,200 | 59,2 | 1,120 | 1,360-2,100 | 2,170 | 11 |
| 1,400 | 65,6 | 1,320 | 1,580-2,310 | 2,390 | 13 |
| 1,600 | 71,9 | 1,520 | 1,800-2,530 | 2,610 | 15 |
| 1,800 | 78,3 | 1,720 | 2,020-2,750 | 2,830 | 17 |
| 2,000 | 84,3 | 1,920 | 2,220-2,950 | 3,030 | 19 |
