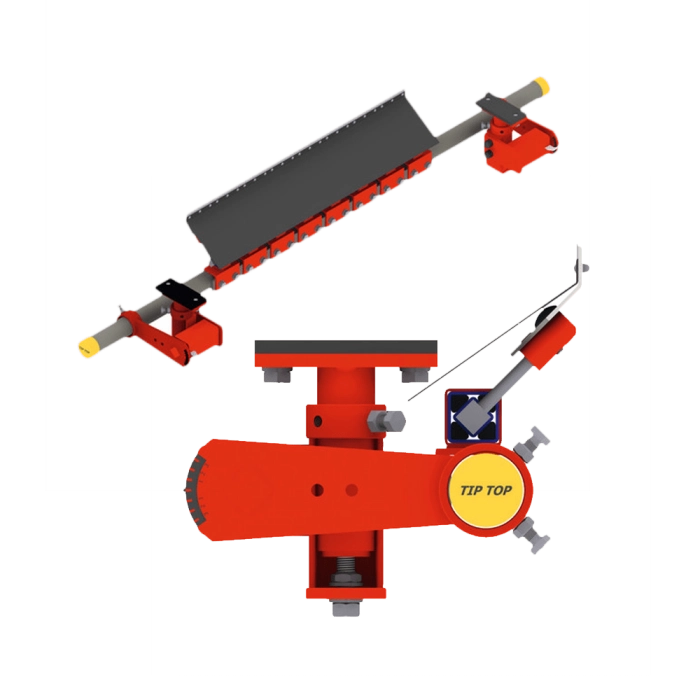

REMACLEAN HM-U9
U-Series – for belt return side applications
The REMACLEAN HM-U9 system is suitable for effective
and gentle cleaning of conveyor belts up to 6.5 m/s. The
individually flexible carbide blades adapt perfectly to the
conveyor belt surface and can be easily adjusted thanks
to a torsion spindle tensioning unit.
Подробности о продукте
Benefits
• Optimal adjustment to the
conveyor belt surface
• Long service life due to the use
of highly wear-resistant carbide
• Protection of the system support
by PE or VA drainage apron
• For belt widths from
650 – 2,000 mm
| Technical Data | ||||||||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] | D [mm] | F [mm] | G [mm] | H [mm] | [mm] | J [mm] |
| 650 | 42.6 | 600 | 725 - 1,390 | 1,650 | 51 | 103 | 70 | 85 | 120 | M16 |
| 800 | 57.4 | 720 | 870 -1,430 | 1,750 | 60,3 | 135 | 122 | |||
| 1,000 | 65.1 | 960 | 1,110 - 1,680 | 2,000 | ||||||
| 1,200 | 97.3 | 1,080 | 1,230 - 1,800 | 2,200 | 76,1 | 165 | 170 | |||
| 1,400 | 103.1 | 1,200 | 1,350 - 2,000 | 2,400 | ||||||
| 1,600 | 178.4 | 1,440 | 1,660 - 2,540 | 3,000 | 101,6 | 192 | 100 | 190 | 150 | M20 |
| 1,800 | 192.6 | 1,680 | 1,900 - 2,840 | 3,300 | ||||||
| 2,000 | 219.6 | 1,800 | 2,020 - 2,930 | 3,600 | 300 | |||||
