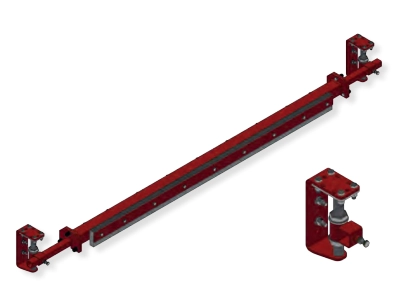

REMACLEAN IGD HD
-Series – for use on the inner belt
This system is suitable for use in the lower run for
cleaning the inner side of the belt in large conveyor
systems. The rubber scraper blade of the REMACLEAN
IGD HD diagonal cleaner serves to protect the pulley
from accumulating material.
Подробности о продукте
Benefits
• Belt-friendly cleaning due to
rubber scraper
• Optimal contact pressure due to
spindle-type tension unit
• System support structure
designed for heavy loads
• Easy to fit and adjust
• Low maintenance
| Technical Data | |||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] | D [mm] |
| 1000 | 42 | 1400 | 1,515 | 1,645 - 2,080 | 2,135 |
| 1200 | 46 | 1600 | 1,765 | 1,895 - 2,330 | 2,385 |
| 1400 | 49 | 1800 | 2,015 | 2,145 - 2,580 | 2,635 |
| 1600 | 53 | 2000 | 2,265 | 2,395 - 2,830 | 2,885 |
| 1800 | 56 | 2200 | 2,515 | 2,645 - 3,080 | 3,135 |
| 2000 | 60 | 2400 | 2,765 | 2,895 - 3,330 | 3,385 |
| 2200 | 63 | 2600 | 3,015 | 3,145 - 3,580 | 3,635 |
