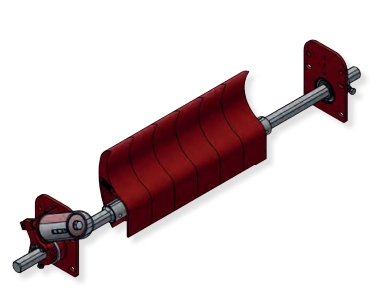

REMACLEAN PUR-F5
F-Series – for use on the pulley
The REMACLEAN PUR-F5 system is suitable for speeds
up to 4.0 m/s and drum diameters up to 800 mm. The
highly abrasion-resistant and individually movable PUR
segments ensure optimum adaptation to the conveyor
belt surface as well as effective cleaning that is gentle on
the conveyor belt.
Подробности о продукте
Benefits
• Optimum adaptation to the
conveyor belt surface thanks
to individually movable PUR
segments
• Long service life due to the use
of highly abrasion-resistant
polyurethane
• Easy adjustment of contact
pressure due to lever clamping
device
• For belt widths from
500 – 1,600 mm
• For drum diameters from
200 – 800 mm
| Technical Data | ||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] |
| 400 | 31.янв | 300 | 410 - 1,050 | 1190 |
| 500 | 34.1 | 400 | 520 - 1,160 | 1300 |
| 650 | 39.3 | 600 | 700 - 1,340 | 1480 |
| 800 | 44.5 | 700 | 850 - 1,590 | 1730 |
| 1000 | 49.8 | 900 | 1,070 - 1,810 | 1950 |
| 1200 | 55.8 | 1100 | 1,290 - 2,030 | 2170 |
| 1400 | 61.7 | 1300 | 1,510 - 2,250 | 2390 |
| 1600 | 67.7 | 1500 | 1,740 - 2,440 | 2610 |
