REMACLEAN TMB
Belt cleaning brushes

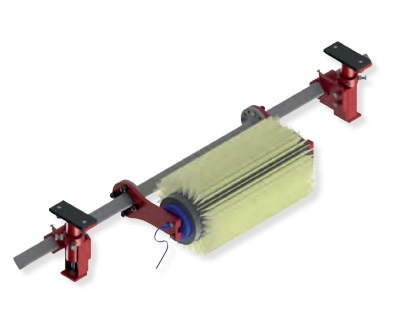

The REMACLEAN TMB drum motor brush with internal
drive is ideal for the fine cleaning of smooth conveyor
belts. The bristles made of highly abrasion-resistant
plastic ensure effective cleaning that is gentle on the
conveyor belt. The spindle clamping device is used for
easy assembly and adjustment of the system.
Подробности о продукте
Benefits
• Effective fine cleaning of smooth
conveyor belts
• Bristles made of highly abrasionresistant plastic
• For belt speeds up to 6.5 m/s
• Easy adjustment thanks to spindle
clamping device
• For belt widths from
400 – 2,000 mm
• Applicable up to 80°C
| Technical Data | |||||||||
| Conveyor Belt Width [mm] | Weight [kg] | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | G | Motor Capacity [kW] |
| 400 | 64 | 300 | 490 - 1,200 | 1400 | 300 | 160 | 120 | M 16 | 0.75 |
| 500 | 68 | 400 | 590 - 1,300 | 1500 | |||||
| 650 | 72 | 500 | 690 - 1,450 | 1650 | |||||
| 800 | 77 | 700 | 890 - 1,550 | 1800 | |||||
| 1000 | 106 | 900 | 1,090 - 1,850 | 2050 | 325 | ||||
| 1200 | 118 | 1100 | 1,290 - 2,000 | 2200 | 1,5 | ||||
| 1400 | 129 | 1300 | 1,490 - 2,200 | 2400 | |||||
| 1600 | 157 | 1500 | 1,690 - 2,380 | 2600 | 200 | 150 | M 20 | ||
| 1800 | 167 | 1700 | 1,890 - 2,580 | 2800 | |||||
| 2000 | 177 | 1900 | 2,090 - 2,780 | 3000 | |||||
