REMAGRIP 65 V
The self-extinguishing, universal lagging for mediumduty operating conditions
RREMAGRIP 65 V is self-extinguishing and antistatic. It has been specially designed for
ATEX operating conditions with high fire regulation or potentially explosive environments
such as coal mines or power plants for example.
Required adhesive system for antistatic rubber coatings:
PRIMER PR 200 and CEMENT SC 4000 black/HARDENER ER-42 or
CEMENT SC 2000 black/HARDENER UT-R 20.
German underground approval: LOBA No. 18.43.21-89-33
Polish underground approval: Dopuszczenie WUG Katowice No. B/1724/IV/2016
Подробности о продукте
Properties
• Self-extinguishing, antistatic and
moderate oil resistant REMAGRIP 65
premium quality
• Excellent wear resistance
• Reduces slippage between belt and pulley
• Improves and stabilizes coefficient of
friction
• Evacuation of moisture and dirt
• Protects the pulley against wear and
corrosion
• Prevents material build-up
• Positive influence on belt tracking
• CN bonding layer provides fast and
good adhesion
Area of application
• For medium-strength fabric and
steelcord belts
• Grooved rubber lagging for drive pulleys
| REMAGRIP 65 V/CN | ||
| Specifications | ||
| Polymer basis | CR | DIN ISO 1629 |
| Specific weight | 1.39 g/cm³ | DIN EN ISO 1183-1 |
| Hardness | 60 Shore A | DIN ISO 7619-1 |
| Electric resistance | Antistatic* | |
| Inflammability | Self-extinguishing** | |
| CN bonding layer | Conductive, black | |

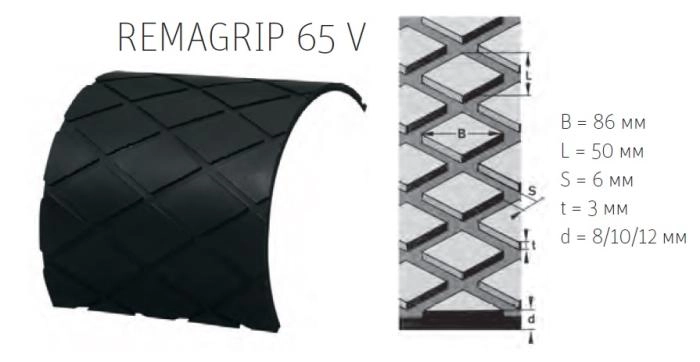

| Profile | 50 x 6 x 3 mm (Profile 50) | |
| Colour | Black | |
| Ref. No. | Designation | Dimensions | Weight |
| 5495707 | REMAGRIP 65 V/CN | 8 x 2 000 x 10 000 mm | 11.36 kg/m² |
| 5503075 | REMAGRIP 65 V/CN | 10 x 2 000 x 10 000 mm | 14.20 kg/m² |
| 5503123 | REMAGRIP 65 V/CN | 12 x 2 000 x 10 000 mm | 17.04 kg/m² |
